Enameled Rectangular Wire Production

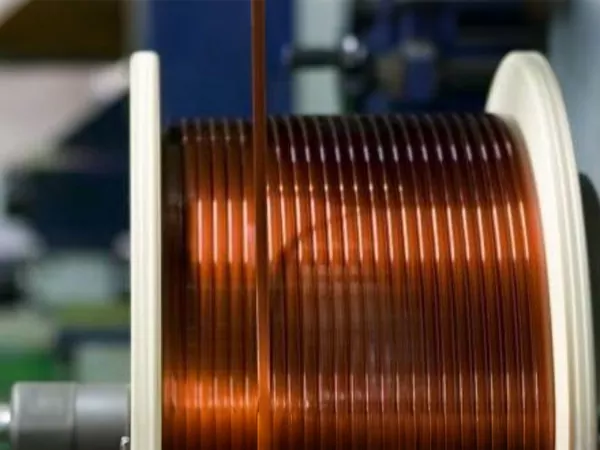

Enameled Rectangular Wire Production (also known as flat magnet wire) is a critical component in transformers, electric motors, generators, and a wide range of increasingly common electrical equipment. Its rectangular cross-section design maximizes space utilization in winding applications, offering superior electrical efficiency and better heat dissipation compared to traditional round wire. Our GRM factory’s integrated drawing and rolling production line provides you with a proven, effective solution.

Why Enameled Rectangular Wire Production Demands Specialized Equipment

The Precision Challenge

Producing high‑precision enamelable rectangular copper wires is significantly more difficult than producing round wire. The core challenges include:

Asymmetrical lubrication – When drawing dies are used, the cooling fluid forms an asymmetrical lubricating film compared to round wire drawing.
Speed limitations – At speeds above 60 m/min, the lubricant film begins to crack around edge radii, leading to die failure. (By contrast, round wire drawing can achieve up to 3000 m/min.)
Enameling constraints – Enameling lines for rectangular wires operate at significantly lower speeds (max. 25 m/min) than round‑wire lines due to asymmetry that makes uniform coating difficult at higher speeds.
Dimensional precision – The enamel insulation is extremely thin (50–150 μm, applied in 10–20 layers, each as thin as 5 μm). If the bare wire does not have correct dimensions, coating becomes either too thin or too thick, causing insulation faults that lead to winding failure during operation.

The Case for Integrated Rolling Over Standalone Drawing

To overcome these challenges, rectangular copper wires for transformer and motor applications are typically rolled, coiled, and insulated in high‑performance rolling mills rather than produced in‑line with enameling lines. One rolling line typically supplies 8 to 15 enameling lines.

The GRM integrated drawing and rolling line offers distinct advantages over standalone processes:

Eliminates intermediate material handling – Reducing manual intervention and potential surface damage.
Ensures dimensional consistency – Throughout the entire production run.
Improves overall efficiency – By combining drawing, rolling, online measurement, and automatic take‑up into one continuous process.

GRM’s Integrated Solution for Enameled Rectangular Wire Production

GRM’s integrated drawing and rolling line is engineered specifically for continuous processing of copper wire into precision flat conductors. The system is designed for demanding high dimensional precision in electrical conductor production, with a maximum speed of 400 m/min—well‑suited for large‑scale continuous manufacturing of copper flat wire.

Complete Production Line Configuration

Component	Quantity
Vertical Coil Payoff Stand	1 set
DLF6D/500 Six‑dies Drawing Machine	1 set
Two‑roll Precision Rolling Mill	3 sets
Side Rolling Mill	2 sets
Online Polishing and Dust Collection Device	1 set
Online Thickness and Width Measuring Device	1 set
Transverse Take‑up Machine	1 set

5‑Stand Rolling Mill Technical Specifications

Parameter	Specification
First Two‑high Mill	Ø 300 mm
First Edger Mill	Ø 155 mm
Second Two‑high Mill	Ø 200 mm
Second Edger Mill	Ø 155 mm
Third Two‑high Mill	Ø 160 mm
Design Speed	400 m/min
Maximum Inlet Wire Diameter	Ø 8 mm
Finished Thickness Tolerance	±0.005 mm
Finished Width Tolerance	±0.01 mm
Typical Finished Thickness Range	2.0 – 12 mm
Typical Finished Width Range	0.5 – 4.0 mm

Why Precision Matters for Enameled Rectangular Wire

The dimensional accuracy achieved by GRM’s rolling line—thickness tolerance ±0.005 mm and width tolerance ±0.01 mm—is directly relevant to enameled rectangular wire quality:

Uniform enamel coating – Precise bare wire dimensions ensure consistent insulation layer thickness, preventing weak spots that cause electrical failure.
Higher thermal class compatibility – Precise conductors support advanced enamel coatings with thermal classes up to 200°C, 220°C, and beyond.
Compliance with international standards – GRM equipment produces wire that meets IEC 60317 series, NEMA MW1000, GB/T, and JIS C3202 standards.

Key Applications of Enameled Rectangular Wire

Enameled Rectangular Magnet Wire

Enameled rectangular wire serves as the foundational material for magnet wire applications across multiple industries:

Transformer conductors – Power transformers, dry‑type transformers, oil‑immersed transformers
CTC (Continuously Transposed Conductor) – Groups of enameled rectangular wires (typically 5–84 strands) stranded into a rectangular rope for large power transformer windings
EV motor hairpin conductors – Solid rectangular copper conductors bent into hairpin shapes, replacing stranded wire to increase power density by over 20% compared to traditional round wire windings
General motor and generator windings – DC motors, traction motors, generators, and alternators

Why Choose GRM for Enameled Rectangular Wire Production Equipment

Engineering Expertise

16+ years of accumulated expertise in metal forming technology
50+ product patents, including Polygonal Wire Automatic Feeding Device and Busbar Rolling Equipment breakthroughs
30% of workforce are R&D personnel

Quality Assurance

National High‑Tech Enterprise
EU CE Certification
AAA Credit‑Rated Enterprise
Equipped with Japanese CNC centers, laser precision tools, and automated lines
Integrated R&D, machining, and QC labs enabling end‑to‑end production

Global Reach & Local Support

Products exported to the U.S., Russia, Southeast Asia, and other markets
Domestic partners include Beijing General Research Institute for Nonferrous Metals, Baosheng Cable, and China Steel Group
48‑hour global response + lifetime technical support

Frequently Asked Questions

Can this production line manufacture copper flat wire for enameled rectangular wire applications?

Yes. The line is specifically designed for producing high‑precision copper flat wire for transformer conductors, magnet wire, EV motor hairpin conductors, and other electrical applications that require enameled rectangular wire.

What accuracy can the precision rolling process achieve for enameled rectangular wire?

The system achieves thickness tolerance up to ±0.005 mm and width tolerance up to ±0.01 mm—meeting the stringent dimensional requirements for high‑quality enameled rectangular wire production.

Can the line be customized for specific enameled rectangular wire dimensions?

Yes. GRM provides customized production line solutions based on your input material, finished wire dimensions, and production requirements. The production line process can be customized according to customer product dimensions.

Why choose an integrated drawing and rolling line instead of separate machines for enameled rectangular wire?

The integrated line improves production efficiency, reduces material handling, ensures more stable product consistency, and eliminates the risk of surface damage that can occur during intermediate handling—all critical factors for producing defect‑free enameled rectangular wire.
