Integrated Drawing and Rolling Line for Precision Copper Flat Wire

GRM integrated drawing and rolling line combines wire drawing, precision rolling, online measurement and automatic take-up into one continuous production process. The system is designed for manufacturing high-precision copper flat wire used in magnet wire, transformer conductor, CTC conductor and EV motor applications.

GRM integrated flat wire production line is designed for continuous processing of copper wire into precision flat conductors with strict dimensional tolerance and excellent surface quality.

By integrating drawing and rolling processes into one production system, the line significantly improves production efficiency while reducing manual handling and maintaining stable product consistency throughout long production cycles.

Flexible and efficient design

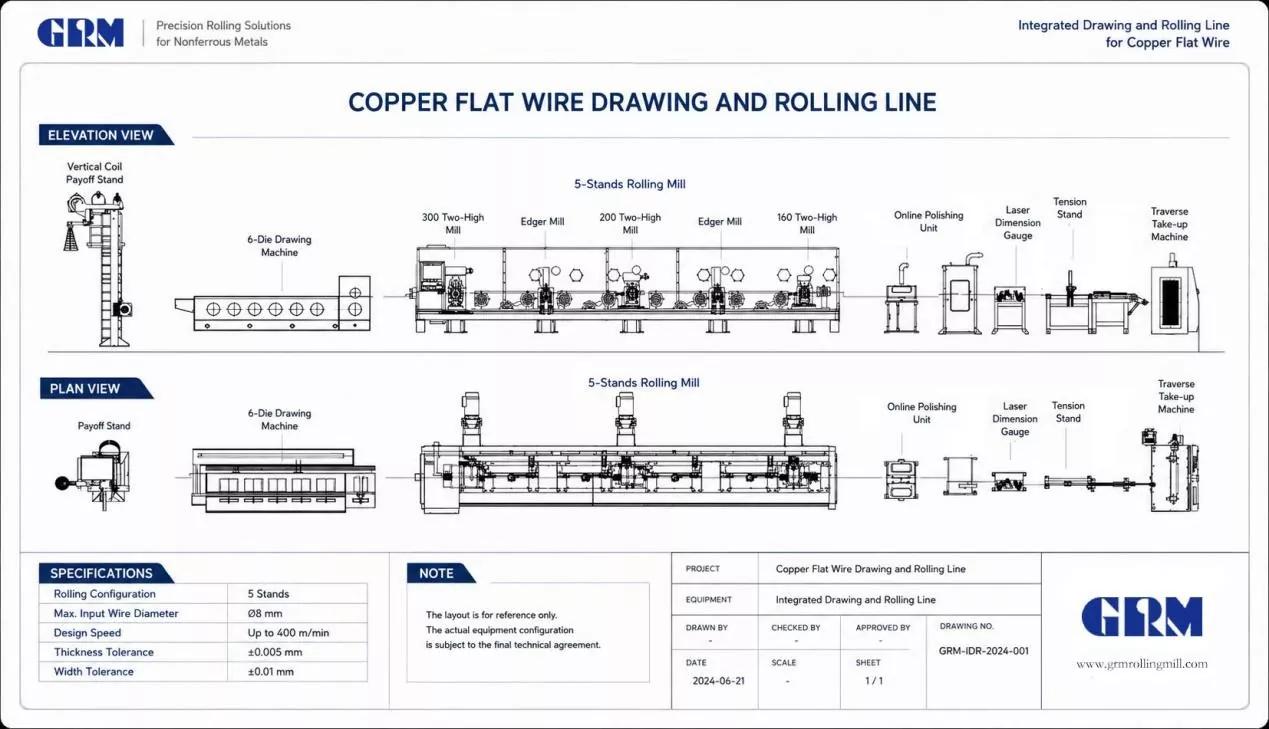

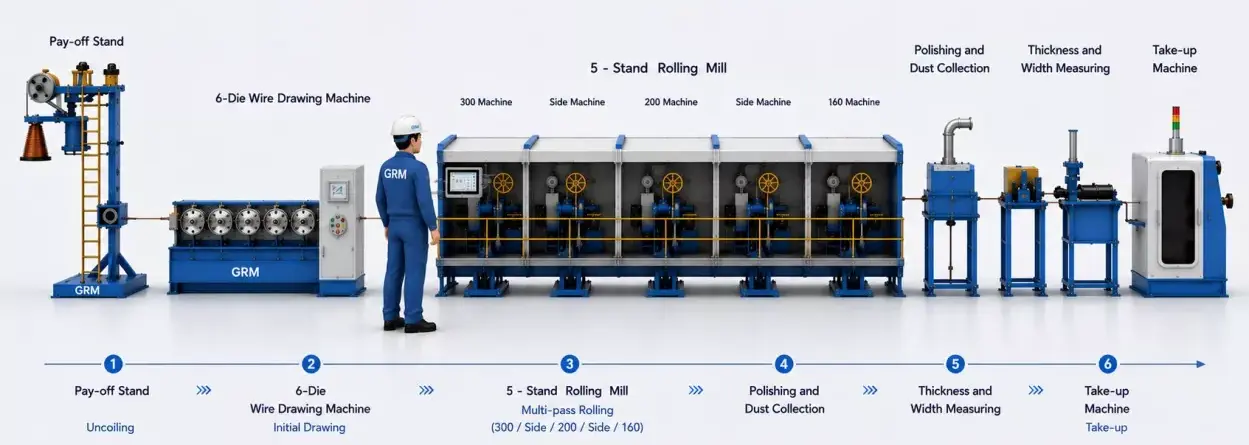

Vertical Coil Payoff Stand: 1 set

DLF6D/500 Six dies Drawing Machine: 1 set

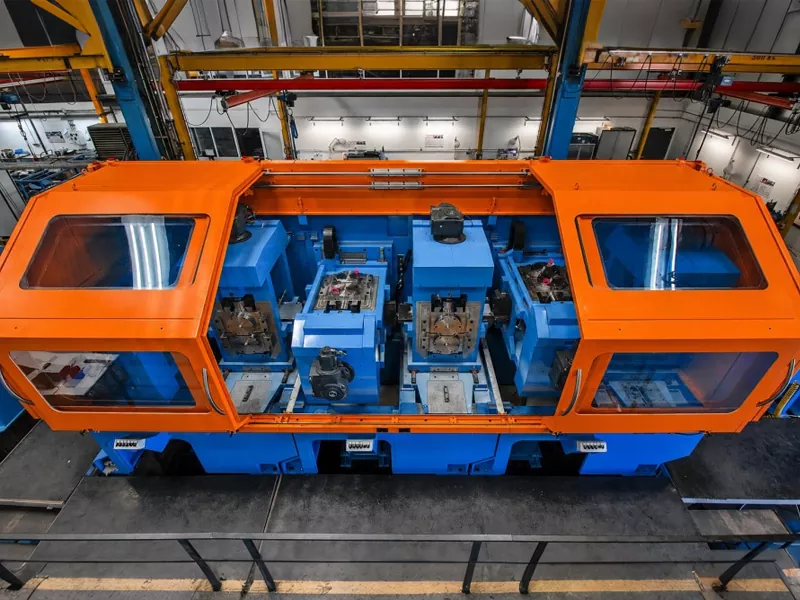

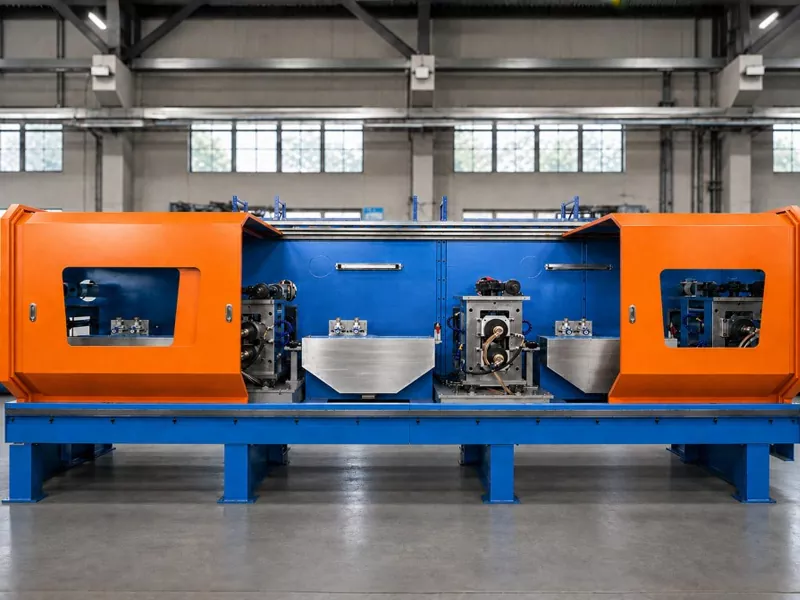

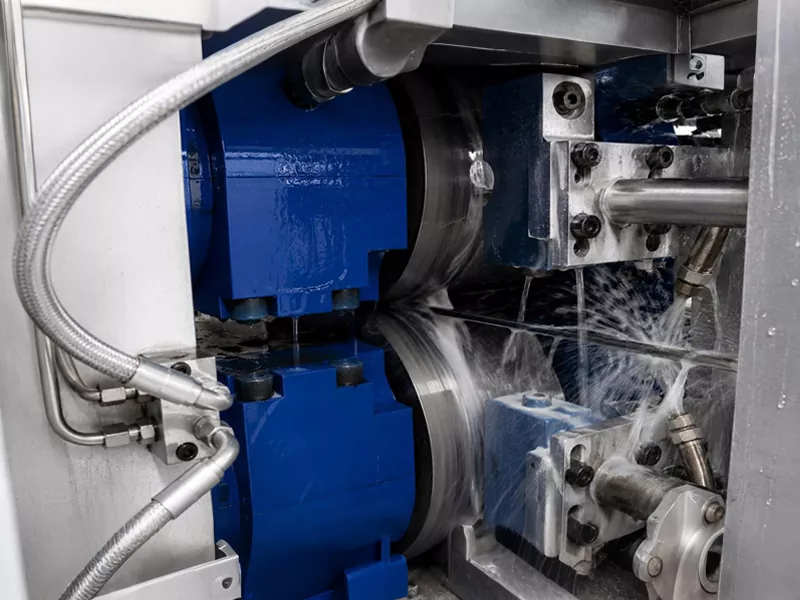

Two rolls precision Rolling Mill: 3 sets

Side Rolling Mill: 2 sets

Online Polishing and Dust Collection Device: 1 set

Online Thickness and Width Measuring Device: 1 set

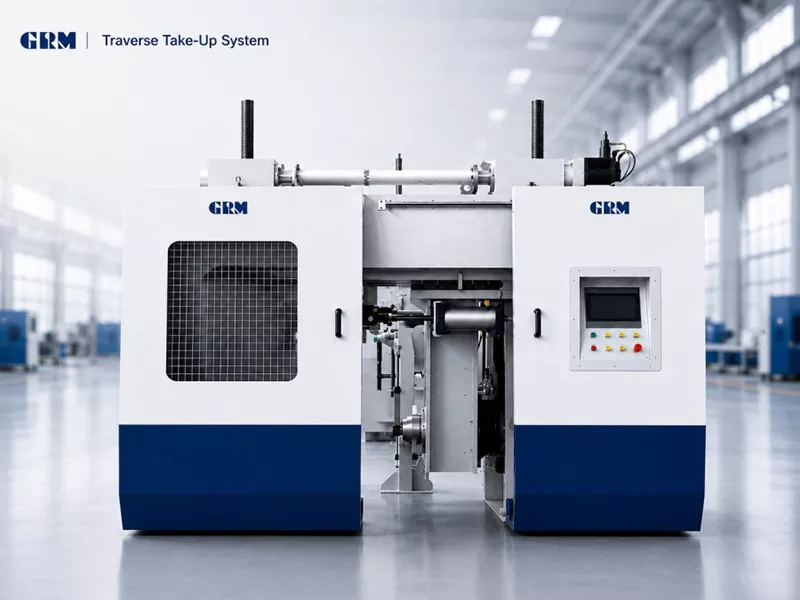

Transverse Take up Machine: 1 set

Complete line for the production of Copper Wire

The Integrated Drawing and Rolling Line for Precision Copper Flat Wire is designed for demanding high dimensional precision in electrical conductor production. With a maximum speed of 400 m/min, it is well-suited for large-scale continuous manufacturing of copper flat wire.

Compared to conventional standalone rolling processes, the integrated line eliminates intermediate material handling and ensures superior dimensional consistency throughout the entire production run.

* Production Line Process Can Be Customized According to Customer Product Dimensions

TECHNICAL SPECIFICATIONS

Typical Applications

Enameled Rectangular Magnet Wire

CTC Continuously Transposed Conductor

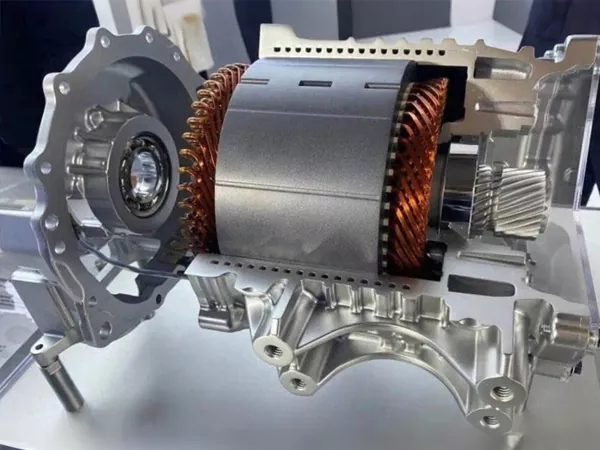

EV Motor Hairpin Conductor

EV Motor Flat Wire Production

FAQ

1. Can this production line manufacture copper flat wire for transformer applications?

Yes, the line is designed for producing high-precision copper flat wire for transformer conductors, magnet wire and other electrical applications.

2. Can the Integrated Drawing and Rolling Line for Precision Copper Flat Wire be customized?

Yes, GRM provides customized production line solutions based on your input material, finished wire dimensions and production requirements.

3. What accuracy can the precision rolling process achieve?

The system can achieve thickness tolerance up to ±0.005 mm and width tolerance up to ±0.01 mm for precision copper flat wire production.

4. Why choose an integrated drawing and rolling line instead of separate machines?

The integrated copper flat wire production line improves efficiency, reduces material handling and ensures more stable product consistency.

Looking for a Customized Copper Flat Wire Production Solution?

GRM provides complete engineering solutions based on your material specification, finished wire dimensions and downstream application requirements.

Contact our engineering team for technical consultation and customized production line design.
