Rectangular Wire Micro Rolling Unit

GRM Rectangular Wire Micro Rolling Unit is designed for precision rolling of fine round metal wire into high-accuracy rectangular wire through continuous multi-pass cold rolling process.
The system is developed for producing fine rectangular wire for miniature coils, precision winding conductors, medical guidewire flat wire components, sensor conductive elements and other micro profiled metallic parts requiring stable dimensions and clean surface condition.
As a specialized manufacturer of precision rolling equipment, GRM provides customized micro rolling solutions for copper wire, alloy wire and other fine metallic materials according to different production requirements.

Send Inquiry

Product Description

GRM Micro Rolling Unit is designed for continuous conversion of fine round wire into precision rectangular wire with narrow thickness range and high width-to-thickness ratio.

The production process integrates active pay-off, multi-pass rolling deformation, tension synchronization, inline dimensional inspection, optional cleaning system and precision spool winding into one continuous production sequence.

Compared with conventional large rolling equipment, the micro rolling system is specifically developed for small-size conductors where dimensional repeatability, reduction stability and surface quality directly influence downstream forming, winding and assembly processes.

Production Capability

The equipment is suitable for manufacturing ultra-fine rectangular wire and micro flat conductors with strict tolerance control for high-value precision applications.

Technical Parameters

Technical Item	Specification / Available Data

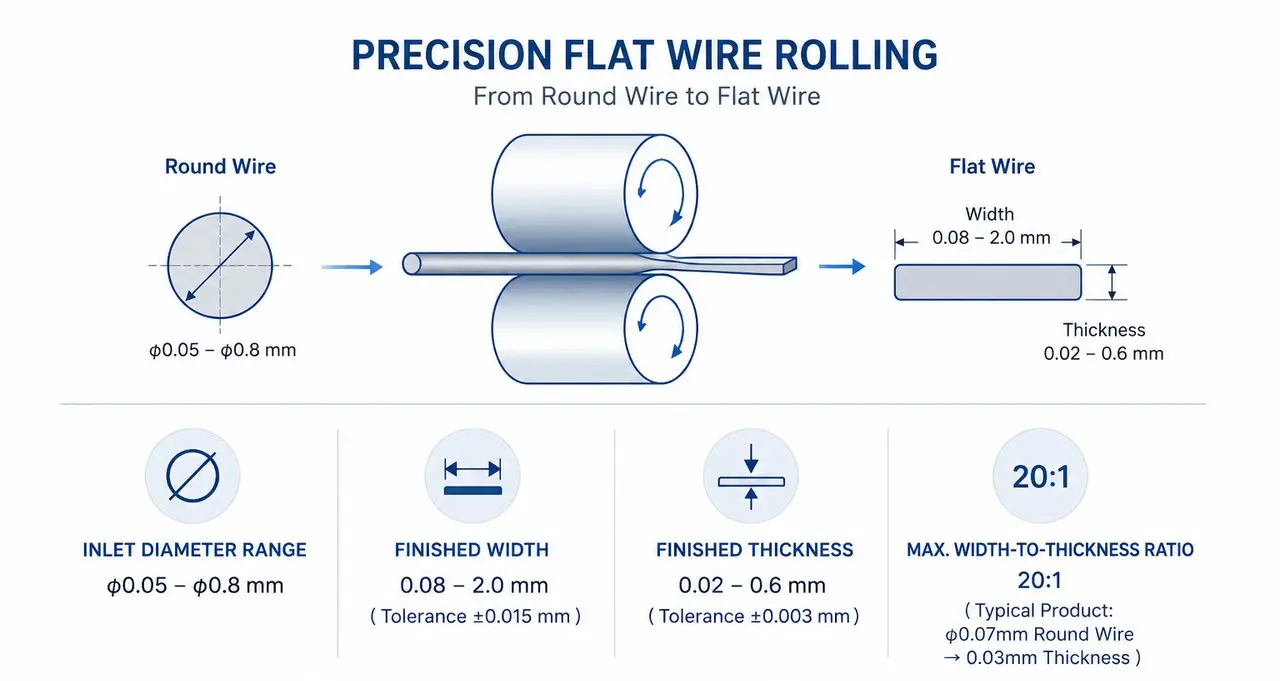

Input wire diameter	0.05-0.8 mm
Finished width	0.08-2.0 mm
Finished thickness	0.02-0.6 mm
Maximum width/thickness ratio	20:1.
Mechanical design maximum speed	200 m/min.
Cooling & lubrication	Spray cooling with filtration circulation system
Control system	HMI operation interface with real-time production monitoring
Machine Configuration	Customized according to project requirements

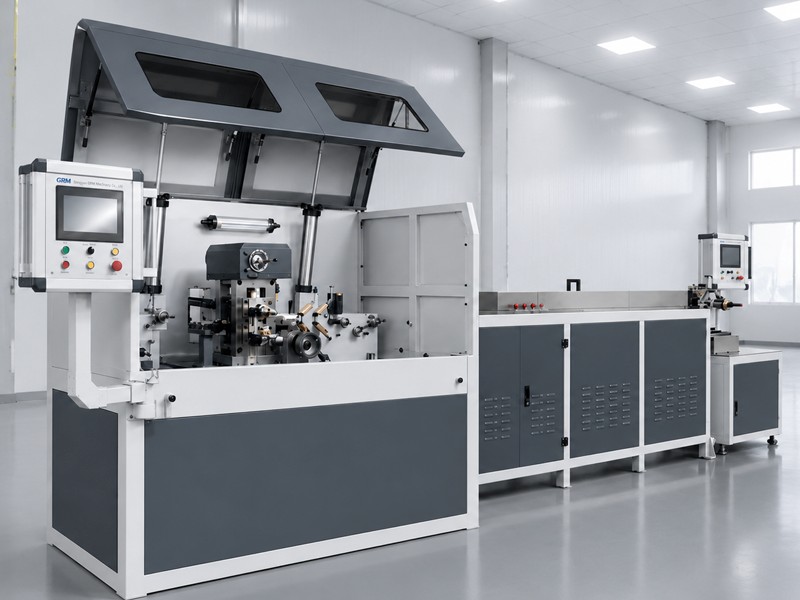

Standard Production Flow

Active pay-off

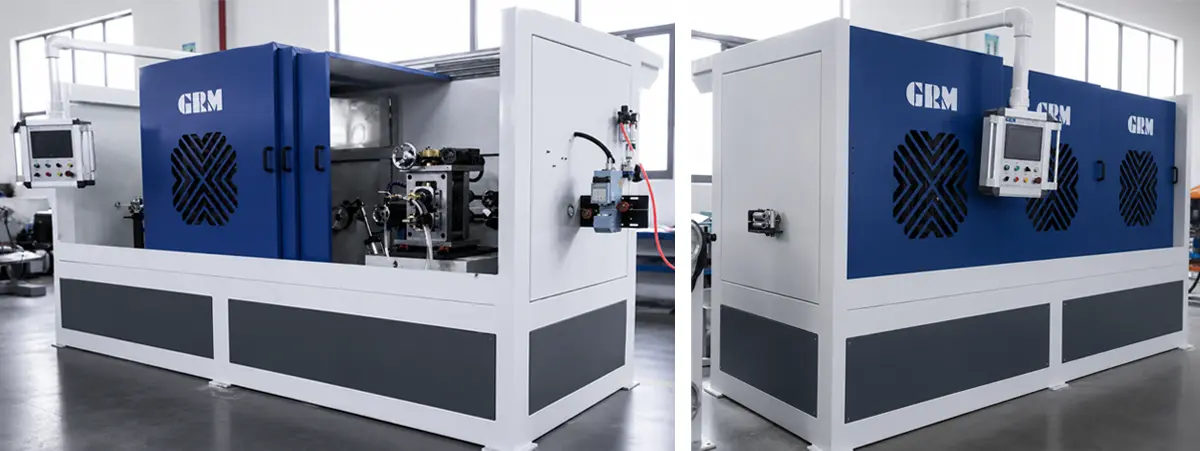

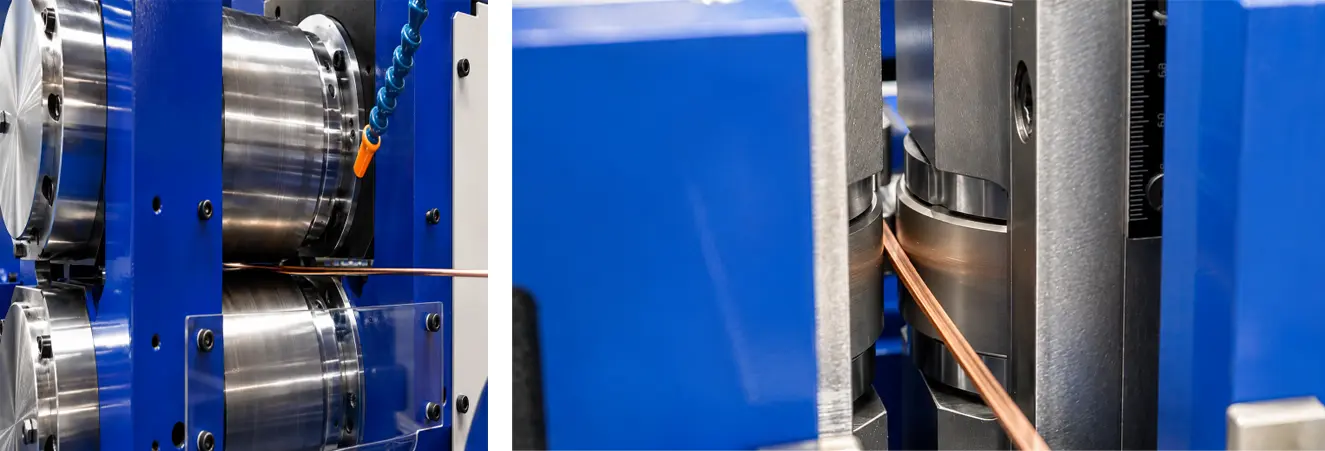

GRM160 rolling mill
Dancer after rolling mill
Inline inspection
GRM90 rolling mill
Inline cleaning +drying （optional）
Spooler

Intelligent Control System

Centralized HMI operation system for complete line control
Real-time monitoring of rolling speed, tension and production status
Fast adjustment access for rolling parameter correction
Visual display of complete production process sequence

Applications

The Rectangular Wire Micro Rolling Unit is widely used in industries requiring high-precision fine rectangular conductors.

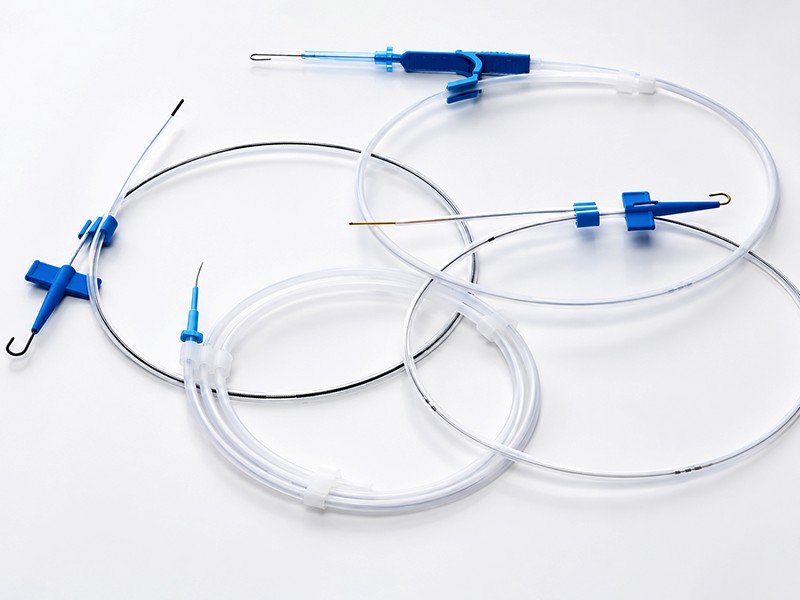

Medical guidewire flat wire

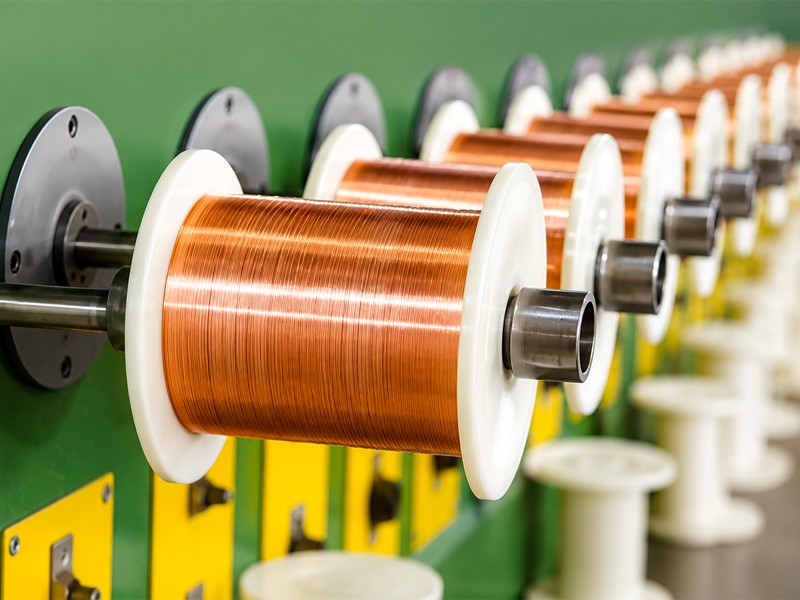

Miniature transformer winding conductors

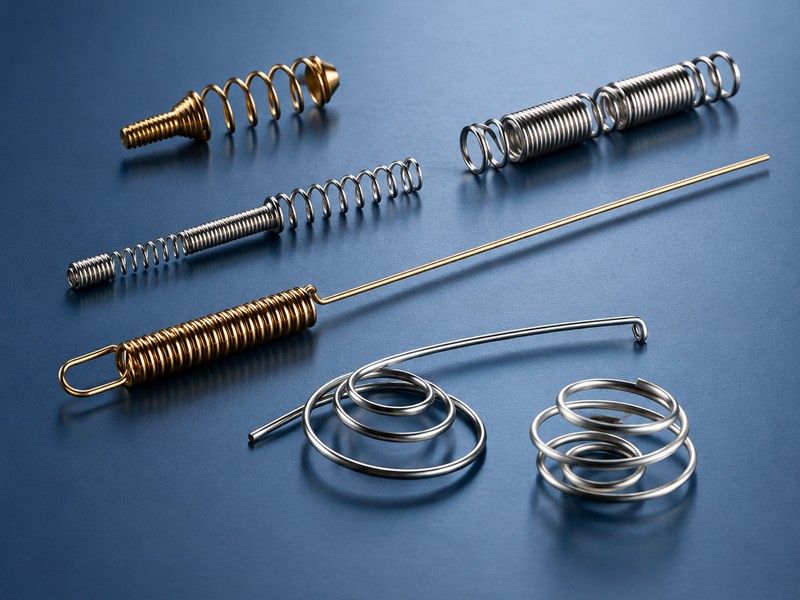

Precision conductive spring components

Sensor conductive elements

High-value alloy conductor production

FAQ for Procurement and Engineering Teams

Question	Answer
What material can the machine process?	The provided source specifically mentions copper round drawn wire. Other materials should be reviewed by grade, hardness and reduction schedule.
Can the line be customized?	Yes. GRM can customize line layout, inspection points, take-up specification and auxiliary systems after receiving the target product range.
What information is required for quotation?	Material, input wire diameter, finished width/thickness, tolerance, production speed, spool type, available floor space and required standards.
Does the line include inline cleaning?	Yes, the described process includes inline cleaning, drying and spraying-liquid filtration.
Can GRM provide a turnkey solution?	Yes. GRM can provide a customized production line, technical proposal, delivery, installation guidance, commissioning and training support.
Which parameters still need confirmation?	Rolling force, installed power, line dimensions, equipment weight, final standards version, delivery time and acceptance procedure.
