CTC Continuously Transposed Conductor Line

The GRM Rolling Mill CTC Continuously Transposed Conductor Line boasts stable operation and high precision, supports speed adjustment and customized configurations, and is widely applicable to precision wire production in transformer, new energy vehicle, home appliance, medical, and aerospace electrical fields. Contact us!

Send Inquiry

Product Description

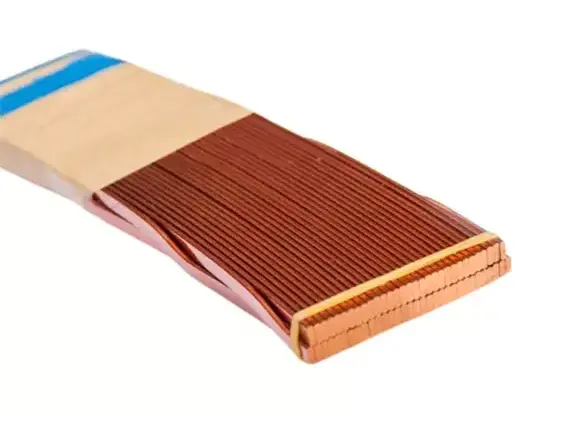

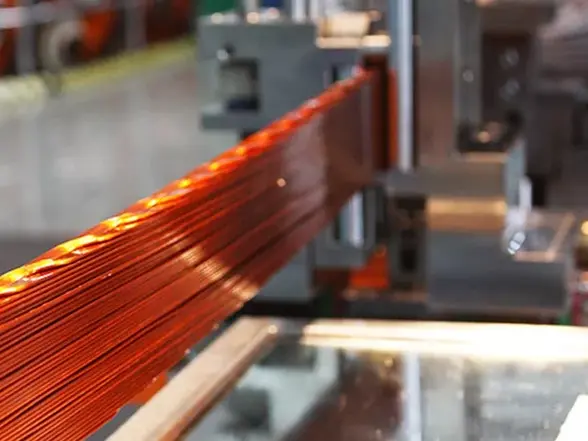

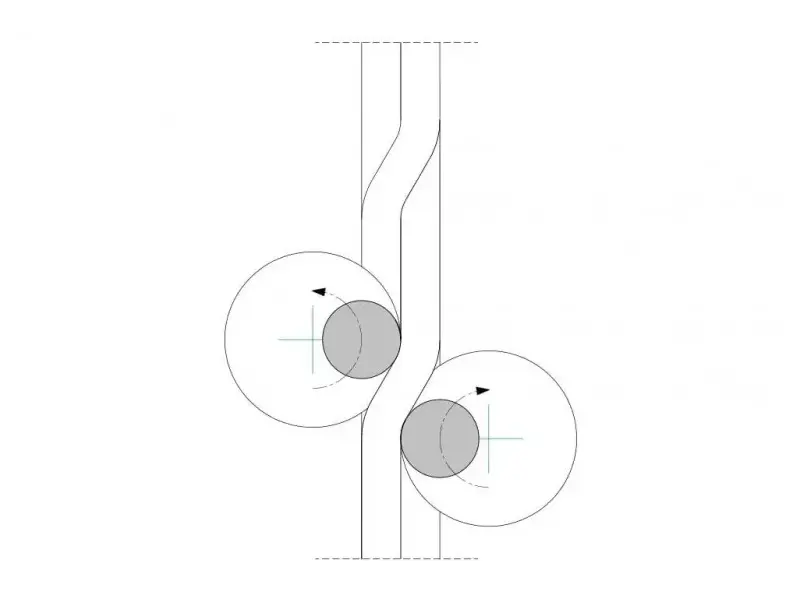

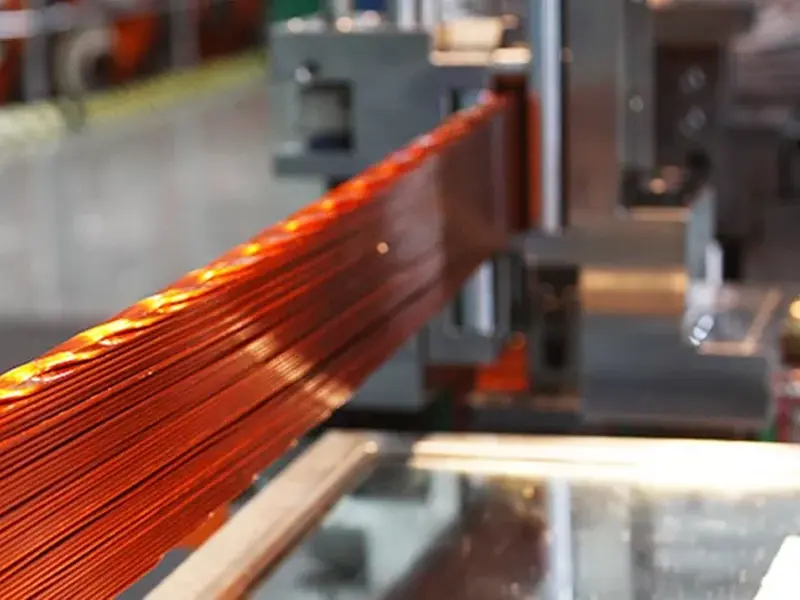

GRM Rolling Mill’s CTC Continuously Transposed Conductor Line continuously transposes from 5 up to 47 strands by coating cold-worked, oxygen-free flat copper wires with insulating varnish and wrapping them with insulating paper and other insulation materials. The conductors are then stranded into a compact and neatly arranged rectangular cross-section conductor bundle.

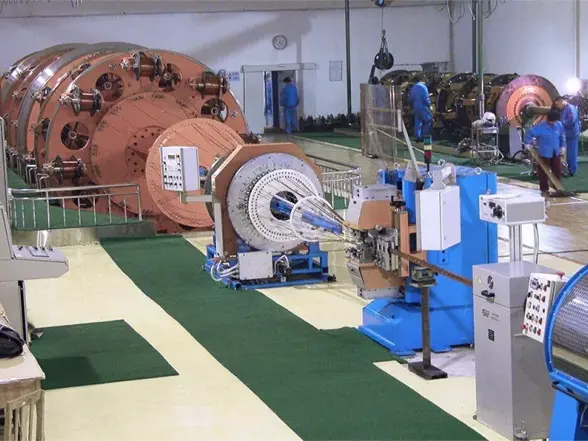

CTC Continuously Transposed Conductor Line for EV components

CTC Continuously Transposed Conductor Line for Household appliances

CTC Continuously Transposed Conductor Line for Medical devices

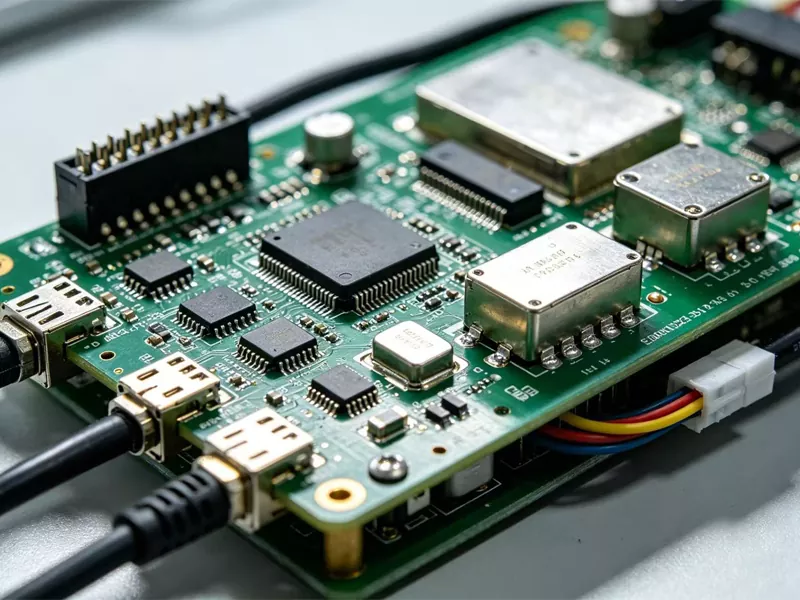

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Application Industries

1. transformer windings

2. EV components

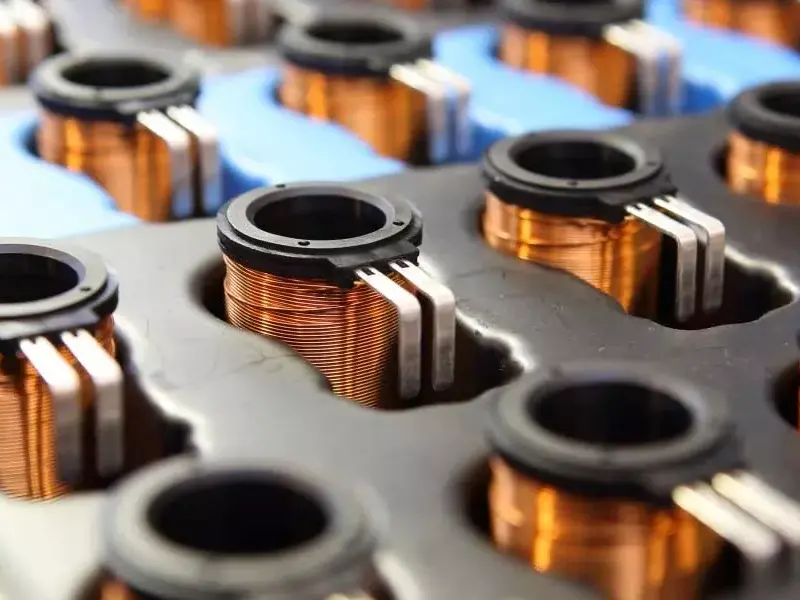

3. Household appliances

4. Medical devices

5. Aerospace electrical assemblies

Main Process Flow

Pay-off→Parallel Guiding→Precision Transposition→Insulation Wrapping (Optional)→Take-up

Technical Specifications

Single Conductor Parameters	Min	Max
Thickness	1.15mm	3.15mm
Width	3.0mm	12.5mm
Width/Thickness Ratio	3:1	8:1
Enamel Thickness	0.08mm	0.18mm

CTC Conductor Parameters	Min	Max
Production Speed	1 m/min	15 m/min
Number of Conductors	5 (odd)	47 (odd)
Height (mm)	5.0	80.0
Width (mm)	6.0	26.0
Transposition Pitch (mm)	20	280
Height/Width Ratio	1:3	8:1
Transposition Push Speed	colspan=“2”	150 times/min

Key Features

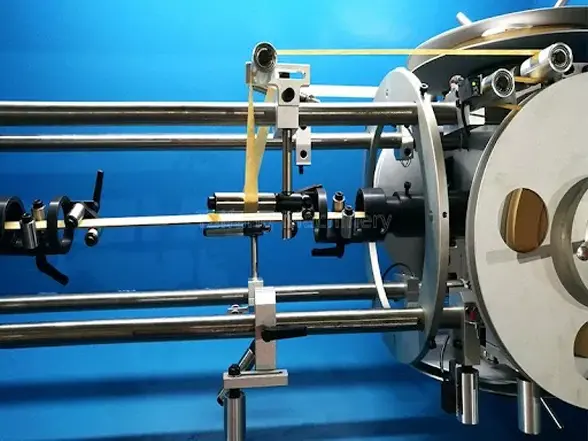

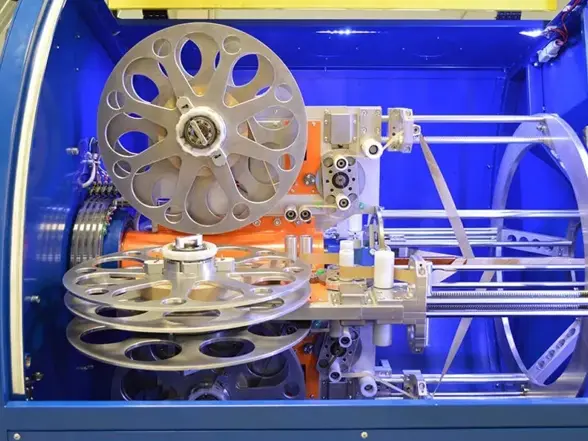

1. Precision transposition system for stable conductor alignment

2. CTC Continuously Transposed Conductor Line can be compatible with enamel-coated flat copper conductors

3. Optional insulation paper wrapping unit

4. Servo-controlled tension and winding system

Technical Advantages

GRM production facility is equipped with online coating and inspection systems capable of processing specialty magnet wires with multi-layer enamel coatings. Fresh coating processing within the same facility improves electrical resistance performance and enhances conductor surface quality. Continuous online monitoring further ensures dimensional consistency and long-term operational stability.

FAQ

1. What is a CTC conductor?

CTC (Continuously Transposed Conductor) is a rectangular conductor bundle made by continuously transposing multiple insulated flat conductors to reduce eddy current losses in transformers.

2. What materials can the line process?

The line is mainly designed for enamel-coated oxygen-free flat copper conductors and related magnet wire materials.

3. Can the machine be customized?

Yes. GRM provides customized configurations according to conductor dimensions, production speed, insulation structure, and plant layout.

Ready to Upgrade Your Magnet Wire Production?

Contact GRM for customized CTC conductor production solutions tailored for precision flat wire processing, transformer applications, and advanced magnet wire manufacturing.
