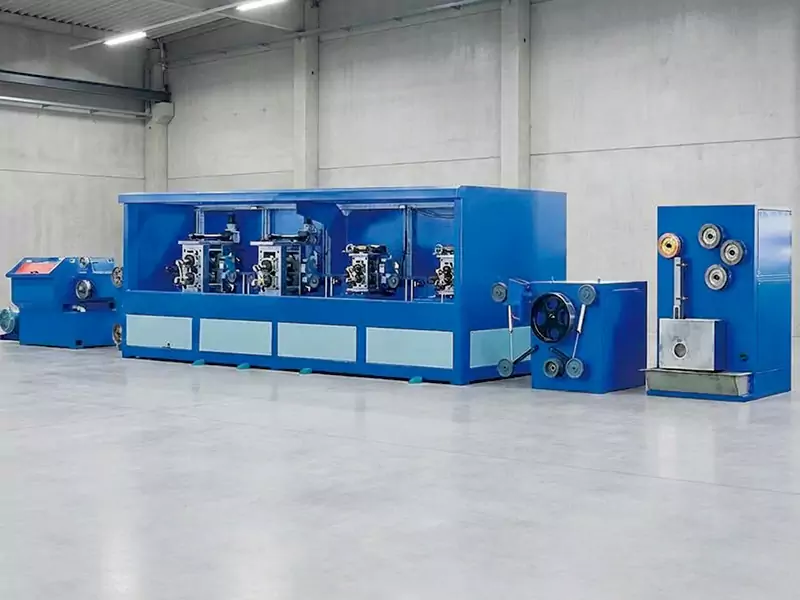

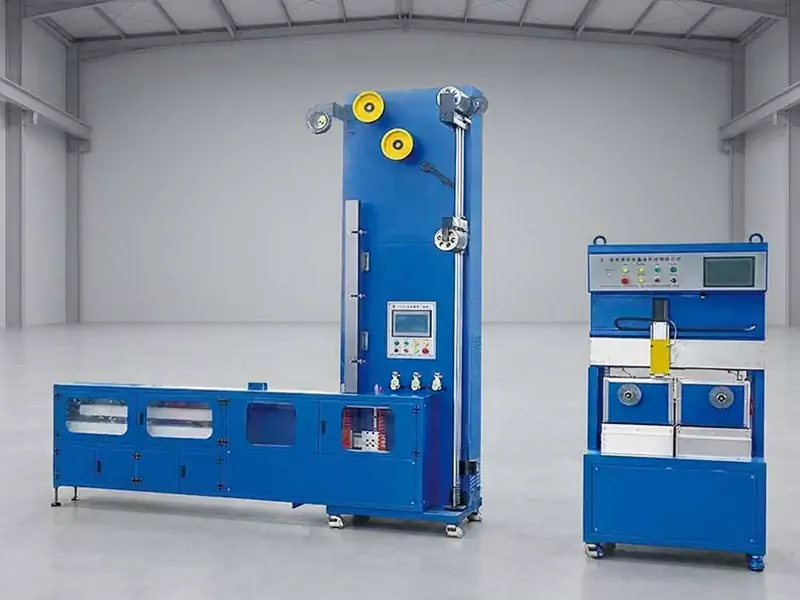

Photovoltaic Welding Strip Rolling Mill

The China photovoltaic welding strip rolling mill produced by GRM Rolling Mill factory is a special flat wire product used to connect solar cells in photovoltaic modules. It is composed of copper substrate and surface coating. Copper substrate is usually high-purity oxygen free copper or T2 red copper, with copper content ≥ 99.99% and conductivity ≥ 98%. It has good conductivity and certain strength, which can ensure efficient current transmission.

Send Inquiry

Product Description

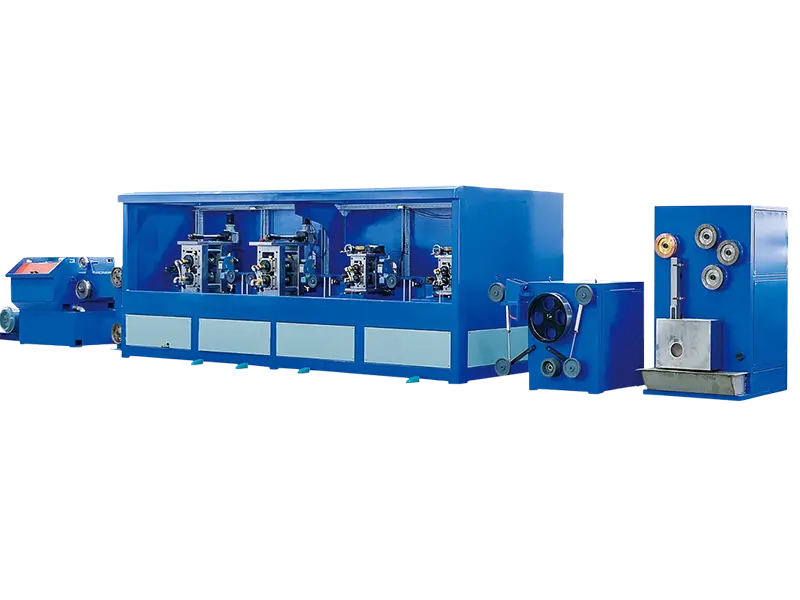

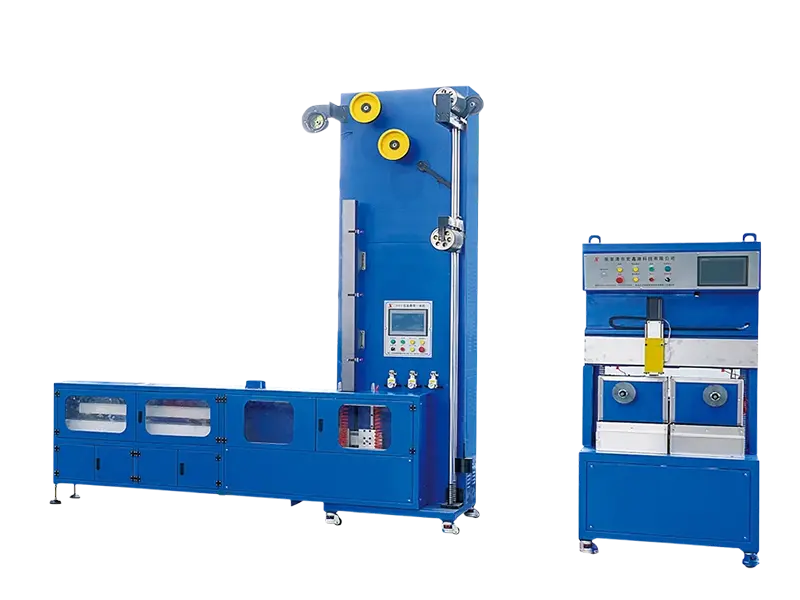

The durable Photovoltaic Welding Strip Rolling Mill from GRM Rolling Mill supplier integrated machine independently developed by our company is a high-end intelligent equipment specially designed for the photovoltaic industry. It integrates core functional modules such as fully automatic wire-laying system, multi-pass precision rolling, intelligent tension control, continuous annealing and double-station winding.

As the industry-leading high-speed, high-precision busbar integrated machine, this equipment can realize the full-process integrated production from ¢3mm copper raw materials to finished products (width 3~8mm, thickness 0.2~0.45mm), with a maximum operating speed of 250m/min, perfectly matching the stringent requirements of large-scale manufacturing of photovoltaic modules for high efficiency, high precision and high stability.

Typical process flow

1. Flat wire rolling process (applicable to photovoltaic welding ribbon-convex ribbon integrated machine)

Paying off wire - multi-mode wire drawing - precision calendering - online detection and control - single-mode drawing - CNC stripping - high-speed tinning - continuous annealing (nitrogen protection) - constant tension winding

Technical Parameters

PV Ribbon Products	Parameter	Industry Standard	Other Company	GRM
Standard Interconnect PV Ribbon	Coating thickness	±5μm	25±5μm	25±3μm
	Finished product thickness	20.01mm	20.015mm	20.01mm
	Finished product width	±0.05mm	±0.05mm	±0.05mm
	Tensile strength	≥110Mpa	≥150Mpa	≥170Mpa
	Elongation	≥15%	≥25%	≥25%
	Yield strength	≤70Mpa	≤70Mpa	62.68Mpa
	Sickle bend	≤5mm/m	≤4mm/m	≤4mm/m
	Resistivity	0.30Ω* mm/m 0.30Ω*	0.02-0.023Ωmm/m 0.02-0.023Ω	0.0230 Ωmm/m 0.0230Ω
	Aging resistance	-	-	DH2000

Technical advantages

High precision: ±0.01mm thickness tolerance, adapting to the strict standards of photovoltaic welding strips

High efficiency: 250m/min high-speed rolling, high-quality Photovoltaic Welding Strip Rolling Mill provided

Multi-material adaptation: compatible with copper, aluminum alloy, etc., strong scalability

Surface roughness Ra≤0.2μm (reduce the risk of battery cracking)

Typical applications:

• Photovoltaic field: mass production of photovoltaic welding ribbons and busbars to help components conduct electricity efficiently.

• Custom processing of special-shaped busbars (triangular/trapezoidal cross-section)

• Electronic industry: high-precision flat wire processing, suitable for transformers, inductors and other components

Customized design and after-sales service

• Customized service: parameters such as the number of passes, mold material, and drawing speed can be adjusted according to the specific needs of customers.

• Equipment upgrade: support the addition of pass modules in the later stage to meet the needs of capacity expansion or process upgrade.

• Maintenance cost: The more passes, the higher the mold and maintenance costs, but the efficiency of single processing is significantly improved. It is recommended to make a reasonable choice based on the production scale.

Welcome to contact us and get to know more information about the Photovoltaic Welding Strip Rolling Mill!
