EV Motor Flat Wire Production

As electric vehicle drive systems move toward higher power density, lower loss and more compact motor structures, copper flat wire quality has become a critical factor in motor performance. GRM develops intelligent rolling and forming equipment for EV Motor Flat Wire Production, supporting manufacturers who need stable rectangular copper conductors for hairpin winding, stator production and high-efficiency traction motors.


Based on years of precision metal forming experience, GRM helps customers build reliable flat wire production systems with strong dimensional repeatability, smooth surface control and flexible customization for different EV motor conductor specifications.

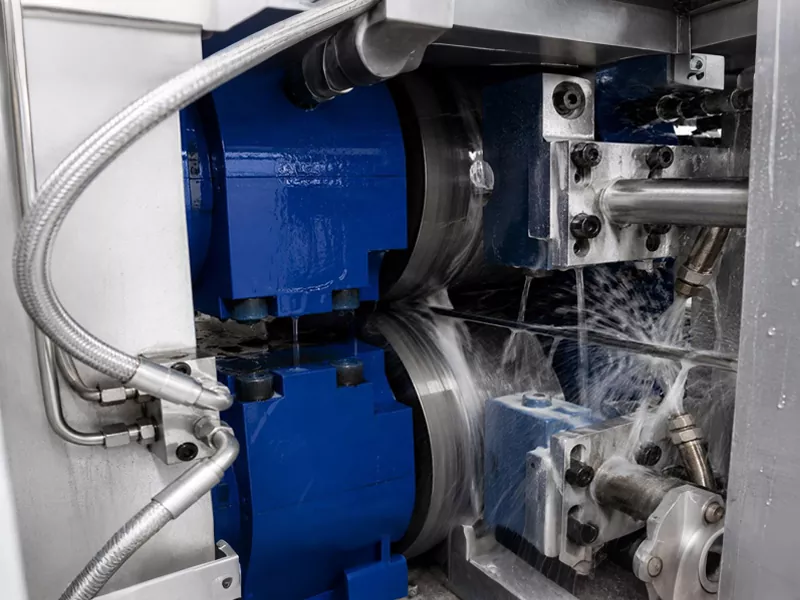

EV Motor Flat Wire Production

What Problems Does This Production Line Solve?

EV motor manufacturers and magnet wire producers often face challenges such as unstable flat wire tolerance, poor edge consistency, surface scratches, low production efficiency and difficulty matching downstream enamel coating or hairpin forming processes. GRM equipment is designed to help solve these issues through precision rolling technology, online monitoring and controlled material handling.

Main Production Challenges Addressed

  • Inconsistent copper flat wire thickness and width
  • Unstable edge shape affecting insulation quality
  • Surface defects that may influence enamel coating performance
  • Low automation caused by separated production processes
  • Difficulty maintaining quality during continuous production
  • Need for different conductor sizes for multiple EV motor platforms

Application Scenarios for EV Motor Flat Wire

The equipment can be used by copper conductor manufacturers, magnet wire factories, EV motor supply chain companies and electrical material producers that need precision rectangular copper wire for new energy vehicle applications.

Common Application Areas

  • Hairpin motor stator winding
  • Flat wire drive motors for electric vehicles
  • Hybrid vehicle motor conductor production
  • High slot-fill factor motor designs
  • Rectangular copper wire before insulation or enamel coating
  • Precision copper flat wire for automotive electrical systems

GRM Precision Rolling Technology

GRM focuses on intelligent precision rolling mills and customized metal forming equipment. The company’s technical team combines mechanical design, automation control and process engineering to support stable copper flat wire production.

Technology Highlights

  • Multi-stand rolling process for gradual and stable material deformation
  • Side rolling control to improve width accuracy and edge consistency
  • High-rigidity mill structure for long-term production stability
  • Servo and PLC control options for repeatable operating parameters
  • Online inspection compatibility for closed-loop quality management
  • Process parameters adjustable for different copper grades and conductor sizes

Recommended Line Structure

GRM can design the line according to the customer’s raw material condition, target output, workshop layout and final copper flat wire specification. Instead of offering only standard machines, GRM provides project-based engineering to help customers match equipment with real production requirements.

Possible Equipment Combination

  • Pay-off system for copper round wire feeding
  • Pre-treatment or straightening section according to material condition
  • Precision rolling unit for thickness reduction
  • Edge rolling unit for width and corner control
  • Surface finishing section for improved conductor appearance
  • Online thickness and width measuring system
  • Tension control system for stable running
  • Take-up system for organized coil collection
  • Electrical control cabinet with human-machine interface

Production Workflow for EV Motor Flat Wire Production

A typical manufacturing process starts from copper round wire or pre-processed copper material. Through controlled deformation, dimensional correction and surface finishing, the line produces rectangular copper flat wire that can be used in subsequent insulation, enamel coating or motor component manufacturing.

Typical Process Flow

  1. Copper wire pay-off and tension control
  2. Initial alignment before forming
  3. Precision rolling for thickness shaping
  4. Side rolling for width control
  5. Surface polishing or cleaning if required
  6. Online measurement and quality monitoring
  7. Finished wire take-up and coil collection

Technical Capabilities

Product Type Precision copper flat wire production equipment
Applicable Material Copper and copper alloy materials, based on customer requirements
Typical Finished Product Rectangular copper conductor for EV motor applications
Dimensional Control High-precision thickness and width control available
Surface Treatment Optional polishing, cleaning and dust collection modules
Automation PLC control, HMI operation and optional online measuring system
Customization Line layout, rolling stands, take-up method and inspection system can be customized

Why EV Motor Manufacturers Care About Flat Wire Accuracy

In EV motor production, conductor size accuracy directly affects slot fill ratio, winding consistency, insulation reliability and heat dissipation performance. Poor dimensional control may cause downstream forming problems or unstable electrical performance.

Benefits of High-Quality Flat Wire

  • Improves slot fill factor in stator design
  • Supports compact and high-efficiency motor structures
  • Helps reduce copper loss and improve current carrying capability
  • Provides better consistency for automated hairpin forming
  • Improves compatibility with enamel coating or insulation processes
  • Reduces quality fluctuation in mass production

GRM Company Advantages

GRM originated from Zhangjiagang Hongxinyuan Technology Co., Ltd., founded in 2008. After strategic restructuring in 2015, the company strengthened its focus on intelligent precision rolling equipment and customized metal forming solutions.

Manufacturing and R&D Strength

  • 20-acre manufacturing base in Zhangjiagang, Jiangsu Province
  • Convenient location near major transportation networks
  • Japanese CNC machining centers and laser precision equipment
  • In-house R&D, machining, assembly and quality inspection capability
  • More than 30% of employees involved in research and engineering work
  • Experience in copper, aluminum, alloy and special metal forming applications

Quality and Trust Signals

  • National High-Tech Enterprise certification
  • EU CE certification for equipment compliance
  • AAA credit-rated enterprise qualification
  • More than 50 product patents
  • Long-term cooperation experience with industrial customers in electrical, automotive, photovoltaic and electronics sectors

Customized Engineering Instead of One-Size-Fits-All Machines

Every EV motor project may require different conductor dimensions, speed requirements, wire surface quality and workshop layout. GRM evaluates the customer’s production target before proposing a suitable equipment configuration.

Information Needed for Technical Proposal

  • Raw material type and inlet wire size
  • Target finished flat wire width and thickness
  • Required dimensional tolerance
  • Expected production capacity or line speed
  • Surface quality requirement
  • Downstream process, such as enamel coating or hairpin forming
  • Workshop layout and available installation space

Service Support for Global Buyers

For overseas B2B buyers, equipment reliability, installation support and after-sales response are as important as machine performance. GRM provides technical communication, project design, production tracking, commissioning guidance and long-term service support for international projects.

Service Scope

  • Requirement analysis before quotation
  • Equipment layout and configuration recommendation
  • Manufacturing progress communication
  • Factory inspection support before shipment
  • Installation and commissioning guidance
  • Operator training and maintenance advice
  • 48-hour after-sales response mechanism
  • Lifetime technical support for equipment operation

FAQ

Is this equipment suitable for EV Motor Flat Wire Production?

Yes. GRM can design equipment for producing rectangular copper flat wire used in EV drive motors, hairpin motors and other new energy vehicle motor applications.

Can GRM adjust the line for different copper flat wire sizes?

Yes. The rolling process, stand configuration, measuring system and take-up method can be customized according to the required finished wire width, thickness and tolerance.

Does the line support online quality inspection?

Online thickness and width measurement can be integrated to monitor dimensional stability and help operators adjust production parameters in time.

Can the equipment connect with downstream insulation or enamel coating processes?

GRM can evaluate the customer’s downstream process and recommend suitable surface treatment, coil take-up and tension control solutions to improve process compatibility.

What makes GRM different from ordinary equipment suppliers?

GRM combines precision rolling technology, in-house machining capability, automation design, project customization and long-term service support, helping customers build equipment that matches real production needs rather than only purchasing a standard machine.

Start Your EV Motor Flat Wire Production Project with GRM

If you are planning to expand copper flat wire capacity for electric vehicle motors, GRM can provide a customized equipment proposal based on your material, conductor size, tolerance and production target. Contact the GRM engineering team to discuss your next project.
