Rewinding Machine

Name: REW-M12 Rewinding Machine
Brand: GRM Rolling Mill

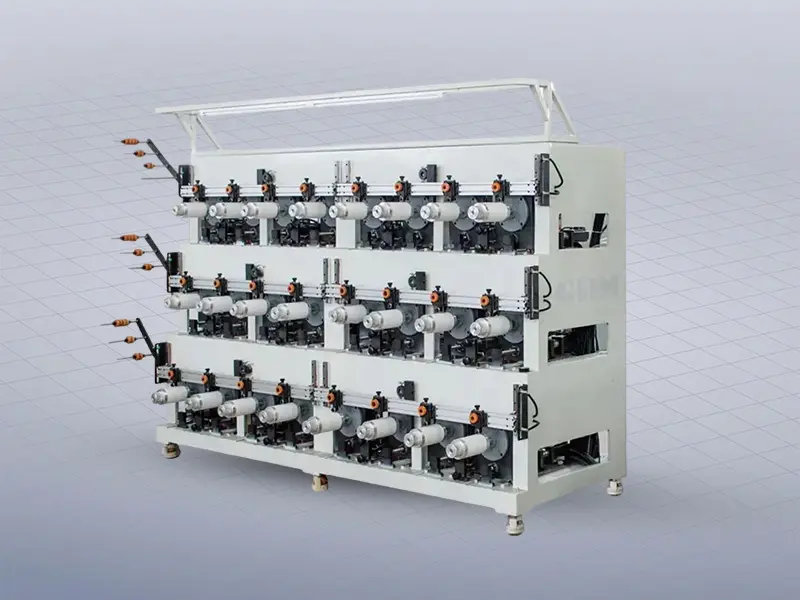

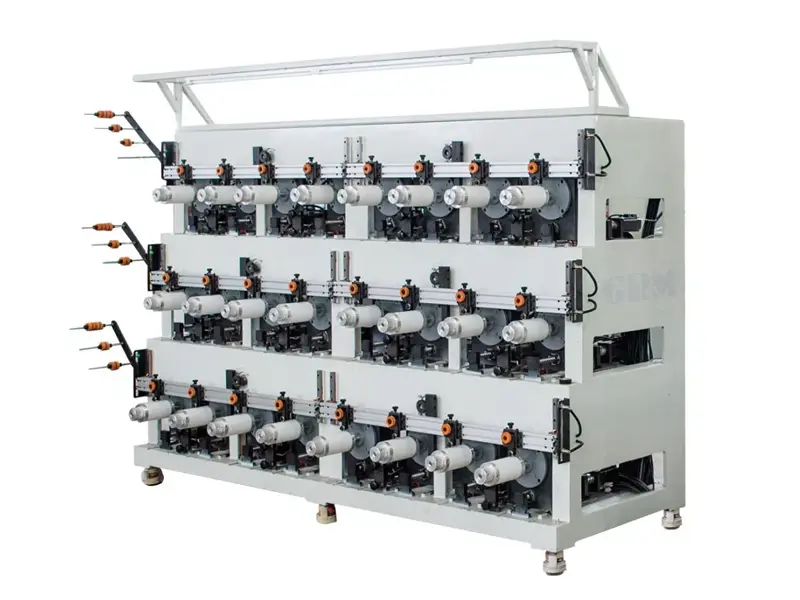

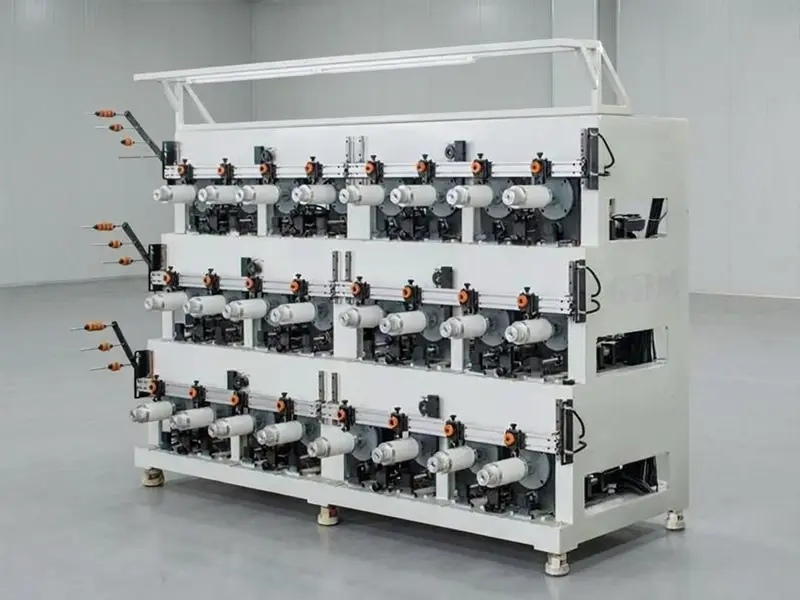

China REW-M12 rewinding machine from GRM Rolling Mill factory is designed for the rewinding of strip and film materials: it enables copper strips, steel strips, and 3M films to be unwound from the original coils and rewound into forms that are more suitable for storage and transportation.

Model:REW-M12

Send Inquiry

Product Description

RE-REELING MACHINE

REW-M12

The advanced REW-M12 model rewinding machine from GRM Rolling Mill manufacturer is designed for the rewinding of strip and film materials: it enables copper strips, steel strips, and 3M films to be unwound from the original coils and rewound into forms that are more suitable for storage and transportation.

Key Features

The number of production heads can be customized according to customer requirements
Process parameters such as wire diameter, winding pitch, and dwell angle can be freely programmed
Fully independent traversing system with full servo control

Technical Parameters

Model	REW-M12	REW-M24
Number of Heads	12	24
Design Speed	200 m/min	200 m/min
Rewind width range	1.5–30 mm	1.5–30mm
Rewind thickness range	0.03-3mm	0.03-3mm
Max. Coil Weight	5-200 kg	5-200kg
Spool Dimensions	Customizable	Customizable

Welcome to contact us and buy our high-quality REW-M12 model rewinding machine!
