Single Stand Multi-Groove Reducing Rolling Mill

GRM Rolling Mill offers a high-quality Single Stand Multi-Groove Reducing Rolling Mill. This equipment utilizes flexible multi-groove rolling technology, making it an ideal solution for laboratory material testing, small-batch prototyping, and multi-specification processing.
1. Stable dimensional control
2. Adjustable rolling speed

Send Inquiry

Product Description

Designed for high-precision diameter reduction, the Single Stand Multi-Groove Reducing Rolling Mill combines flexible production capability with stable rolling performance.

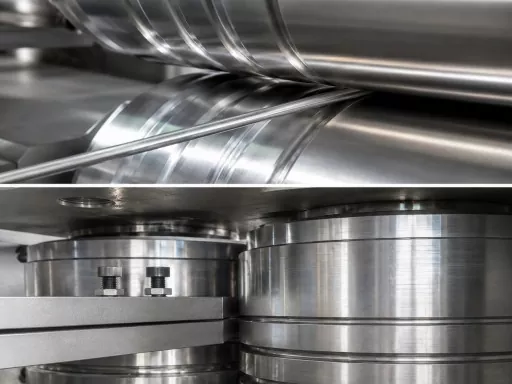

Its multi-groove design allows multiple finished sizes to be produced using a single roll set, reducing changeover time and improving efficiency.

The mill ensures consistent dimensional accuracy, excellent surface quality, and reliable operation across a wide range of ferrous and non-ferrous materials.

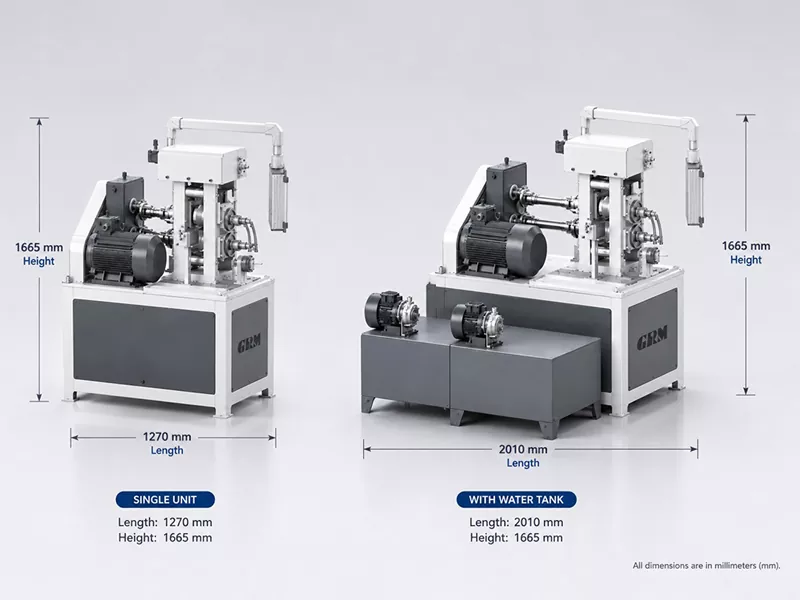

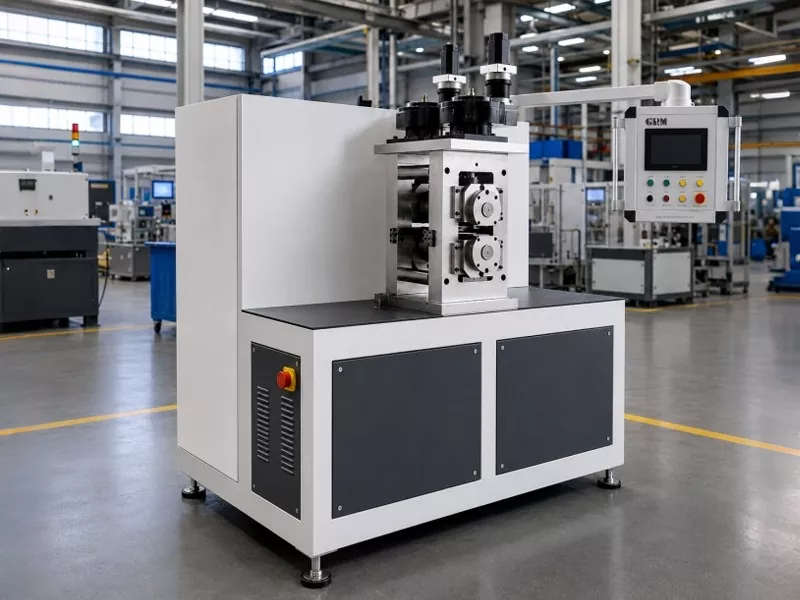

Single stand multi-groove reducing rolling mill overview

Main Technical Parameters

Item	Specification
Applicable Raw Material	Copper, steel, and alloys (including iron-based, titanium-based, and aluminum-based materials)
Max. Input Diameter	Φ30 mm
Input Length	200 mm

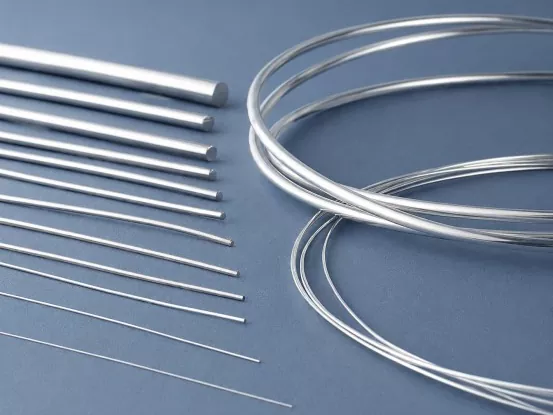

Finished Product Size Range	Φ1–9 mm
Surface Quality	Smooth, flat, wave-free
Rolling Speed	0.5–3 m/s (adjustable)
Work Roll Size	φ160 mm × 400 mm

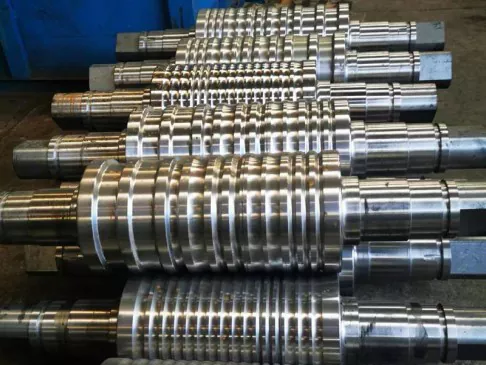

Number of Grooves	25 passes
Product Tolerance	±0.05 mm
Reduction Rate (per pass)	3%–15% (micro-tension reducing)
